Teeb liab Perfection Perspectives

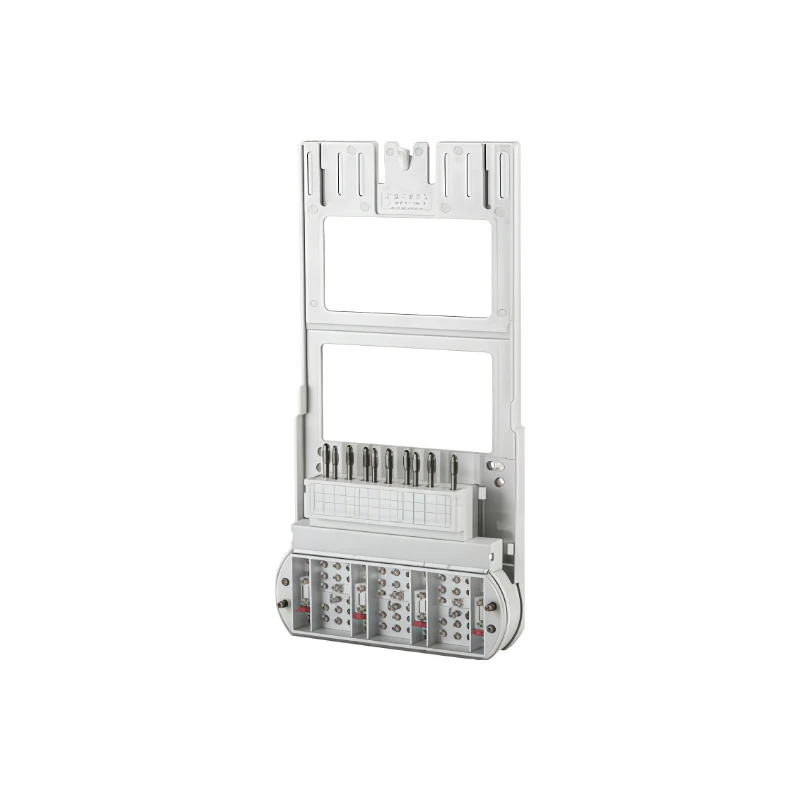

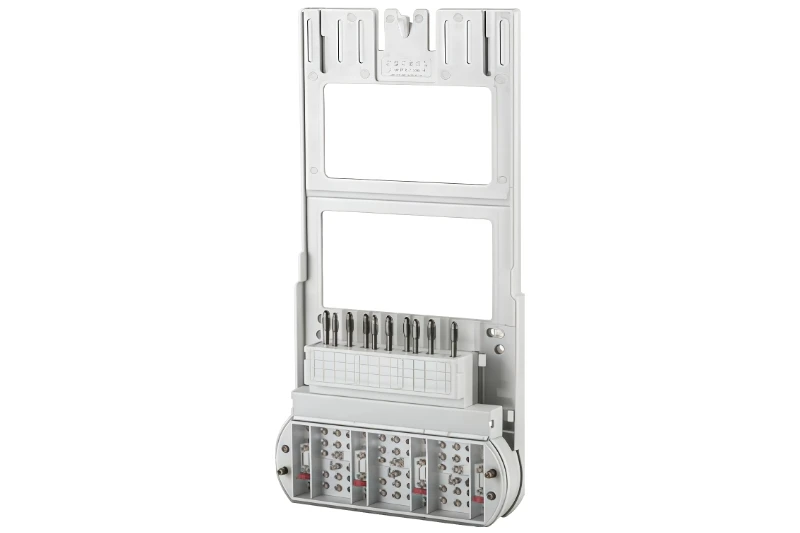

Hauv kev saib xyuas kev siv hluav taws xob niaj hnub thiab kev siv hluav taws xob tiv thaiv relay cubicles, electromagnetic nrov coupling mus rau tam sim no transformer (CT) theem nrab hlau arrays hnyav degrades ntsuas precision. Qhov no tuaj yeem ua rau muaj kev puas tsuaj tsis tseeb ntawm kev mus ncig ntawm Circuit Court breakers. Txhawm rau tiv thaiv qhov kev phom sij no, qhov qis no - dhau 6A peb -theem filtering junction block consolidates channel A-N, B-N, thiab C-N rau hauv ib qho kev tiv thaiv ib qho module. Nws muab cov teeb liab zoo sib xws rau cov microprocessors thiab tshem tawm qhov chaw thiab kev ua haujlwm ntawm cov kab txuas txuas txuas ntxiv.
Cim Engineering Parameters
Ultra-Low Distortion Circuit Core: Cov khoom siv hauv LC filtration yog xam los ntxiv cov input impedance tsis zoo, tiv thaiv tus qauv CT load txwv. Nws tuav ib qho ultra- theem hloov pauv ntawm Tsawg dua lossis sib npaug li 1℃thiab tag nrho cov kev sib xyaw ua ke yuam kev hauv qab 0.5%, ua raws li IEC 61869-2 cov khoom siv hluav taws xob tsis zoo.
Polymer Polycarbonate Isolation Base: Txav deb ntawm cov khoom siv tawv tawv uas ua rau lub cev muaj zog, lub cev raug txhaj nrog siab -molecular polymer polycarbonate. Qhov no muab kev tiv thaiv loj heev los tiv thaiv- tawg ua rau poob siab, xoom ambient nqus dej los thaiv cov kab mob pwm, thiab UL94 V-0 qhov ntsuas hluav taws-retardant.
Kev vibration-Immune Combo Screw Tunnels: Terminal blocks siv kev sib xyaw ua ke ua ke ua ke ntawm qhov ntsia hlau loj. Cov pab pawg ua haujlwm tuaj yeem tsaws cov xov hlau thib ob los ntawm 0.5mm² txog 4mm² uas siv lub taub hau ncaj ncaj los yog hla cov ntsia hlau, tsim kom tsawg - tiv thaiv kab mob uas tiv thaiv tshuab -floor micro- vibrations.
Broadband Conducted Noise Ingress Guard: Muab qhov ruaj khov, txheeb xyuas qhov poob ntawm ntau dua lossis sib npaug li 30dB ncab ntawm 50Hz txog 1MHz. Qhov kev ua tau zoo no nres ua qhov siab - zaus EMI tsim los ntawm cov tsav tsheb sib txawv (VFDs) thiab cov xov tooj cua hauv xov tooj cua los ntawm corrupting rhiab counter cards.
Technical Parameters
| Parameter | Tus nqi |
| Rated Tam sim no | 6 A tas mus li (tsim rau 1 A / 5 A CT theem nrab) |
| Rated Voltage | 660V AC (kev tiv thaiv) |
| Tus naj npawb ntawm Channel | 3 (A‑N, B‑N, C‑N) |
| Lim Topology | Tsawg-pass LC (zoo rau CT teeb liab bandwidth) |
| Insertion Loss (tseem) | Ntau tshaj lossis sib npaug rau 30 dB (50 Hz - 1 MHz) |
| Phase Hloov @ 50 Hz | Tsawg dua lossis sib npaug li 1 degree |
| Composite yuam kev | Tsawg dua los yog sib npaug li 0.5% |
| Hlau Range (tooj liab) | 0.5 mm² - 4 mm² |
| Terminal Hom | Tubular ntsia hlau (torque Ntau dua lossis sib npaug rau 0.5 N·m) |
| Khoom siv tsev | PC |
| Ua haujlwm kub | -25℃- +85 degree |
| Cia Kub | -40℃- +105 degree |
| Mounting | Vaj huam sib luag mount (ntsia hlau) los yog yeem DIN-rail adapter |
| Cov ntawv pov thawj | CE, RoHS, IEC 61869-2 (qhov tseeb) |
Cov Chaw Ua Haujlwm Zoo Tshaj Plaws
Optimized rau ntau- tus neeg xauj tsev ntse- kab sib chaws ntsuas arrays, fais fab chaw nres tsheb tiv thaiv racks, thiab industrial switchgear networks. Nws txo qis tus qauv vaj huam sib luag khoom vaj khoom tsev qhov yuav tsum tau ua los ntawm 50%, ua kom yooj yim rau kev daws teeb meem ntawm pawg ua ntej - cim kev sib txuas cov cim ntawm lub ntsiab chassis.
International Validation Marks
Ua tiav kev ua tiav nrog cov txheej txheem thoob ntiaj teb nruj, chav tsev no tuav cov ntaub ntawv pov thawj Tuam Tshoj Kev Ua Haujlwm (CCC), CE cim, thiab RoHS kev nyab xeeb traceability. Nws ua kom ntseeg tau ntev - cov kev pab cuam lub sij hawm yam tsis tas yuav tsum tau pab lwm tus tswj voltage kab.
