Product Overview

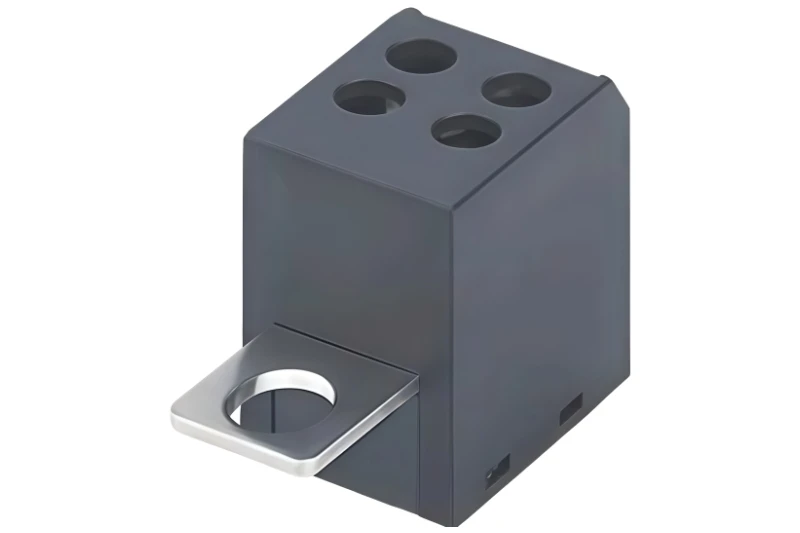

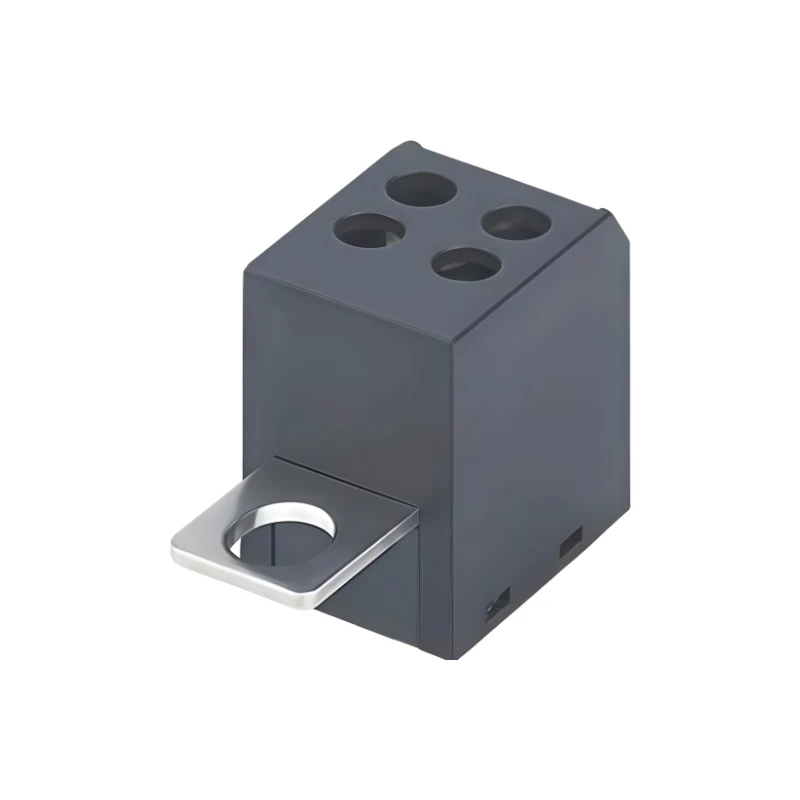

Lub Jack-Up Ib Lub Qhov Ncauj Ob Qhov Chaw Nres Nkoj Block yog qhov sib cog lus, tsim kho tshiab txuas txuas nrog cov khoom siv patented "Jack-Up" raug ntes - ntsia hlau mechanism. Tsim los rau 10-25mm² conductors, nws muab ib qho yooj yim, txhim khu kev qha txoj kev rau splitting ib tug tseem ceeb cov kab nkag mus rau hauv ob ceg circuits thaum tshem tawm cov teeb meem tshwm sim ntawm poob los yog poob screws thaum lub sij hawm installation. Lub jack-nce tsim txo cov sij hawm xaim los ntawm kwv yees li 50% piv rau cov ntsia hlau tsoos terminals.
Jack-Up Mechanism: 50% Faster Wiring
Qhov tshwm sim: 50% txo qis hauv lub sijhawm xaim, xoom ntsia hlau poob qhov xwm txheej, thiab lub zog clamping zoo ib yam tsis hais txog kev txhim kho.
Technical Parameters
| Parameter | Specification |
|---|---|
| Kev teeb tsa | 1 Inlet / 2 qhov hluav taws xob |
| Kab Kab Ntau | 10-25 mm² (Cu) |
| Sawb Ntev | 14-16 mm |
| Rated Voltage | 690V AC ua |
| Rated Tam sim no | 125A |
| Clamping Force | Ntau tshaj lossis sib npaug rau 200 N ib lub davhlau ya nyob twg |
| Tiv tauj Resistance | Tsawg dua los yog sib npaug li 0.3 mΩ |
| Pom zoo Torque | 5–7 N·m |
| Khoom siv tsev | PA66, UL94-V0 nplaim-retardant |
| Tus coj | Tin-plated siab -copper conductivity |
| Ntsia hlau | Hlau, zinc-plated, captive (jack-up design) |
| Mounting | 35 hli DIN Rail |
| Ua haujlwm kub | -40℃rau +105 degree |
FAQ: Clamping Force txhawj xeeb
Q: Puas yog lub jack-up captive ntsia hlau tsim muab tib lub zog clamping raws li cov ntsia hlau tsoos?
A: Yog. Lub jack-up ntsia hlau siv tib lub xov suab thiab clamping geometry raws li tus qauv davhlau ya nyob twg ntsia hlau. Thaum nruj nruj rau qhov pom zoo torque (5–7 N·m), nws tsim kom muaj zog clamping zoo tib yam (Ntau dua lossis sib npaug rau 200N). Cov cuab yeej raug ntes tsuas yog cuam tshuam rau cov ntsia hlau mus ncig ntau yam - nws tsis txo qhov siab tshaj plaws clamping quab yuam. Independent rub- tawm cov kev ntsuam xyuas kom paub meej tias cov neeg tsav tsheb clamped hauv jack{10}} cov terminals tuaj yeem tiv taus tib lub zog tshem tawm ib yam li cov hauv cov pa terminals.
Q: Lub jack- ntsia hlau tuaj yeem dhau- zawm?
A: Cov ntsia hlau muaj qhov zoo nres ntawm tag nrho cov clamp. Kev siv lub calibrated torque wrench teem rau 5-7 N·m yog pom zoo. Tus tsim raug ntes tau txo qis dua - nruj kev pheej hmoo vim tias lub hau ntswj tsis tuaj yeem tsav dhau qhov tsim clamp txoj haujlwm.
Q: Puas yog lub jack-up mechanism haum rau siab -kev vibration ib puag ncig?
A: Yog. Lub captive ntsia hlau, ua ke nrog lub caij nplooj ntoos hlav xauv lub tshuab ntxhua khaub ncaws, muab kev co zoo heev. Cov ntsia hlau tsis tuaj yeem rov qab tawm tag nrho vim tias nws khaws cia los ntawm lub tsev, thiab lub caij nplooj ntoos hlav ntxhua khaub ncaws tuav nruj nreem.
Q: Dab tsi yog hom conductor tau tshaj?
A: Khoom, stranded (Class 2), thiab finely stranded (Class 5/6) tooj liab conductors yog txhua yam sib xws. Rau cov khoom siv hlua khi zoo, siv cov ferrules (cov hlua kawg terminals) raug pom zoo los tiv thaiv txoj hlua khi.
Daim ntawv thov
Cov chaw nyob thiab kev lag luam xa tawm, cov khoom ntsuas ntsuas, cov khoom siv tswj vaj huam sib luag, lub hnub ci sib txuas lub thawv, thiab cov khoom siv siab - ntim qhov twg cov xov hluav taws xob ceev, ntsia hlau tuav, thiab clamping zoo ib yam yog qhov tseem ceeb tshaj plaws rau 10–25mm² ob- Circuit Court tis.
