Product Overview
Ib Tug Ncej Ib Qhov Qhov Ncauj Tsib Lub Taub Hau nqa ib tus neeg xyuas pib tawm mus rau tsib tus lej suav nrog cov khoom siv, hauv lub cev me me txaus rau lub thawv tswj tsis muaj chaw seem.
Nws thawj txoj haujlwm yog muab cov pob qij txha rau qhov chaw nyob. Ib qho chaw ntiav ntiav tsis tshua muaj kev khiav tsheb khiav dawb, thiab cov lus teb ib txwm muaj - ib qho txuas txuas rau nws cov neeg xyuas pib, lossis tsib lub pob qij txha ua nyob rau hauv nruab nrab - huab cua - tawm hauv cov hlau tsis muaj kev txhawb nqa. Qhov thaiv no kho qhov hloov pauv: ib qho clip rau 35 mm DIN rail, los yog ib lub ntsia hlau kho rau lub nraub qaum.
Technical Specifications
| Yam khoom | Specification |
|---|---|
| Kev teeb tsa | 1 ncej, 1 inlet / 5 qhov hluav taws xob |
| Maximum tag nrho cov tswv yim tam sim no | 125 Ib lub luag haujlwm txuas ntxiv, luam tawm ntawm nplooj ntawv no |
| Load Basis | 125 A yog qhov ntsuas tsis tu ncua ntawm qhov thaiv tag nrho, tsis yog ib lub sijhawm thauj khoom ntawm txhua qhov ntawm tsib qhov hluav taws xob |
| Rated Voltage | 690V AC ua |
| Inlet Hlau Range | 10 mm² - 35 mm², khoom lossis stranded tooj liab |
| Qhov hluav taws xob Hlau Ntau | 1.5 mm² - 10 mm², khoom lossis stranded tooj liab |
| Inlet Ntsia Hlau | M6, nruj rau 5 - 7 Nm |
| Qhov hluav taws xob Screw | M4, nruj rau 1.5 - 2.5 N·m |
| Tus coj | Tin-plated tooj liab alloy |
| Tus coj Scope | Ib qho - ncej thaiv yog ib qho polarity nkaus xwb, ib tus neeg xyuas pib rau ib txoj haujlwm. Tapping nyob thiab nruab nrab yog li siv ob lub thaiv ntawm tib lub voj voog, thiab lub ntiaj teb tiv thaiv nyob twj ywm rau hauv lub ntiaj teb bar |
| Tsev | PA66, UL94 V-0 |
| Mounting | Ob txoj kev kho, ob qho tib si luam tawm ntawm no: ib daim clip rau tus qauv 35 mm DIN rail, thiab ib lub ntsia hlau kho rau lub vaj huam sib luag backplate rau enclosures uas tsis muaj tsheb ciav hlau |
| Kev txheeb xyuas Circuit Court | Tsib tus lej ua haujlwm, ib tus neeg xyuas pib nkag rau txhua qhov, nrog rau qhov chaw sau npe rau lub npe thauj khoom thiab tus lej kev cai |
| Hneev taw | Kwv yees li 80 mm × 45 mm × 35 mm |
| Kev tiv thaiv nrog npog kaw | IP20 - cov khoom 12.5 hli thiab loj dua yog khaws cia, uas yog tus ntiv tes sib cuag. Plua plav sealing yog ib qho kev thov cais thiab tsis tau ua ntawm no. Lub npog pob tshab tau teev tseg raws li kev xaiv, thiab tsis muaj kev ntsuam xyuas raug luam tawm rau qhov thaiv tsis muaj nws |
| Ua haujlwm kub | -40℃rau +105 degree |
| Kev kho kom haum | Circuit suav suav hla cov koob, sau npe thiab kho cov ntsiab lus tsim rau koj daim duab; OEM thiab ODM muaj rau ntim xaj |
| MOQ | 10 daim |
| Lub Sijhawm Lead | 7 mus rau 10 hnub tus qauv; 15 mus rau 20 hnub kev cai |
| Kev lav zoo | 12 txog 24 lub hlis, suav txij hnub xa khoom |
| Manufacturing Standard | ISO 9001 kev tswj hwm qhov system |
| Ntim | 20 pieces rau ib lub thawv |
| Chaw nres nkoj xa khoom | Ningbo Chaw nres nkoj / Shanghai Chaw nres nkoj |
| Quote Turnaround | Hauv 24 teev tom qab tau txais daim duab kos |
Core Zoo
Qhov luv luv yog ib qho me me uas tsis muaj qhov chaw los kho qhov sib koom ua ke.
Ob txoj kev kho, Ob leeg luam tawm
Lub tsheb ciav hlau thiab cov ntsia hlau kho rau lub nraub qaum yog ob qho tib si tus qauv, yog li lub thawv ntiav uas tsis muaj tsheb ciav hlau siv tib lub thaiv raws li txoj kab tsheb ciav hlau -fed vaj huam sib luag.
Tsib txoj hauj lwm tuav los ntawm Molding
Cov qhov hluav taws xob zaum hauv ib lub cev kaw, tsis yog ntawm ib lub strip lub installer qhov chaw tawm, yog li qhov sib txawv ntawm cov ceg yog teeb tsa los ntawm cov cuab yeej ntawm txhua txoj haujlwm.
Ib Daim Footprint Loj rau Lub Thawv
Ntawm kwv yees li 80 los ntawm 45 los ntawm 35 mm lub cev yog vim li cas tus qauv no zaum ntawm ib sab ntawm rau - thiab yim- txoj kev versions: nyob rau hauv ib lub rooj tsavxwm heev ntiav rau ib tug ntev thaiv, nws haum.
Kaw, Ntiv tes -Safe, Labeled
Nrog rau kev xaiv npog kaw lub rooj sib txoos yog IP20 thiab cov ntiv tes khaws cia; tsis muaj nws tsis muaj kev ntaus nqi yog luam tawm. Txhua qhov hluav taws xob nqa nws tus lej thiab nws tus kheej nkag.
Mounted Distribution Block vs Loose Terminal Sawb
Qhov txawv yog tsawg dua nyob rau hauv yuav ua li cas ib tug ntsia hlau grips ib tug neeg xyuas pib dua li nyob rau hauv dab tsi sib koom tes yog tsau rau.
| Dab tsi hloov | Qhov Tsib -Txoj Kev Thaiv | Ib Loose Strip Los Loose Joint |
|---|---|---|
| Qhov twg nws zaum | Clipped rau 35 hli DIN rail, los yog ntsia hlau rau lub nraub qaum | Nyob qhov twg cov conductors tshwm sim poob, feem ntau tsis txhawb nqa |
| Nyob qhov chaw | Tom qab ib qho kaw PA66 molding ntsuas UL94 V-0 | Pleev hlau rau ntawm ib lub strips yas, los yog ib lub hnab qhwv |
| Kev ncua deb ntawm txoj haujlwm | Kho los ntawm molding ntawm tag nrho tsib qhov chaw | Teem los ntawm tus installer, ces tuav los ntawm daim kab xev los yog tsis muaj dab tsi |
| Los ntawm tshav kub mus | Cov clip thiab ntsia hlau tuav lub block, molding tuav qhov sib nrug | Lub strips so thiab daim kab xev dries tawm, yog li qhov sib nrug drifts |
| Kov tiv thaiv | IP20 nrog kev xaiv npog kaw | Terminations sab laug qhib, ntxiv rwb thaiv tsev xav tau |
| Ntxiv ib lub voj voog tom qab | Ib txoj hauj lwm uas tsis siv, los yog ib qho kev thaiv thib ob uas txuas nrog | Lub sawb raug txiav thiab rov-drilled |
| Tracing ib lub voj voog | Tsib tus lej ua haujlwm nrog rau qhov chaw sau npe | Pom los ntawm tag, los yog suav los ntawm qhov kawg |
| Tsaus ob polarities | Ob lub blocks, ib qho polarity, ob qho tib si pub los ntawm tib lub voj voog | Mixed polarity raws ib kab txaij, uas yog qhov twg qhov yuam kev pib |
Cov txheej txheem kev tshaj lij
Copper bar txiav, cov rooj zaum hauv lub davhlau ya nyob twg xuas nrig ntaus rau daim duab, thiab qhov txiav ntsej muag deburred yog li tus neeg xyuas pib ntsib hlau.
Degreased, ces tin plated rau daim duab thickness.

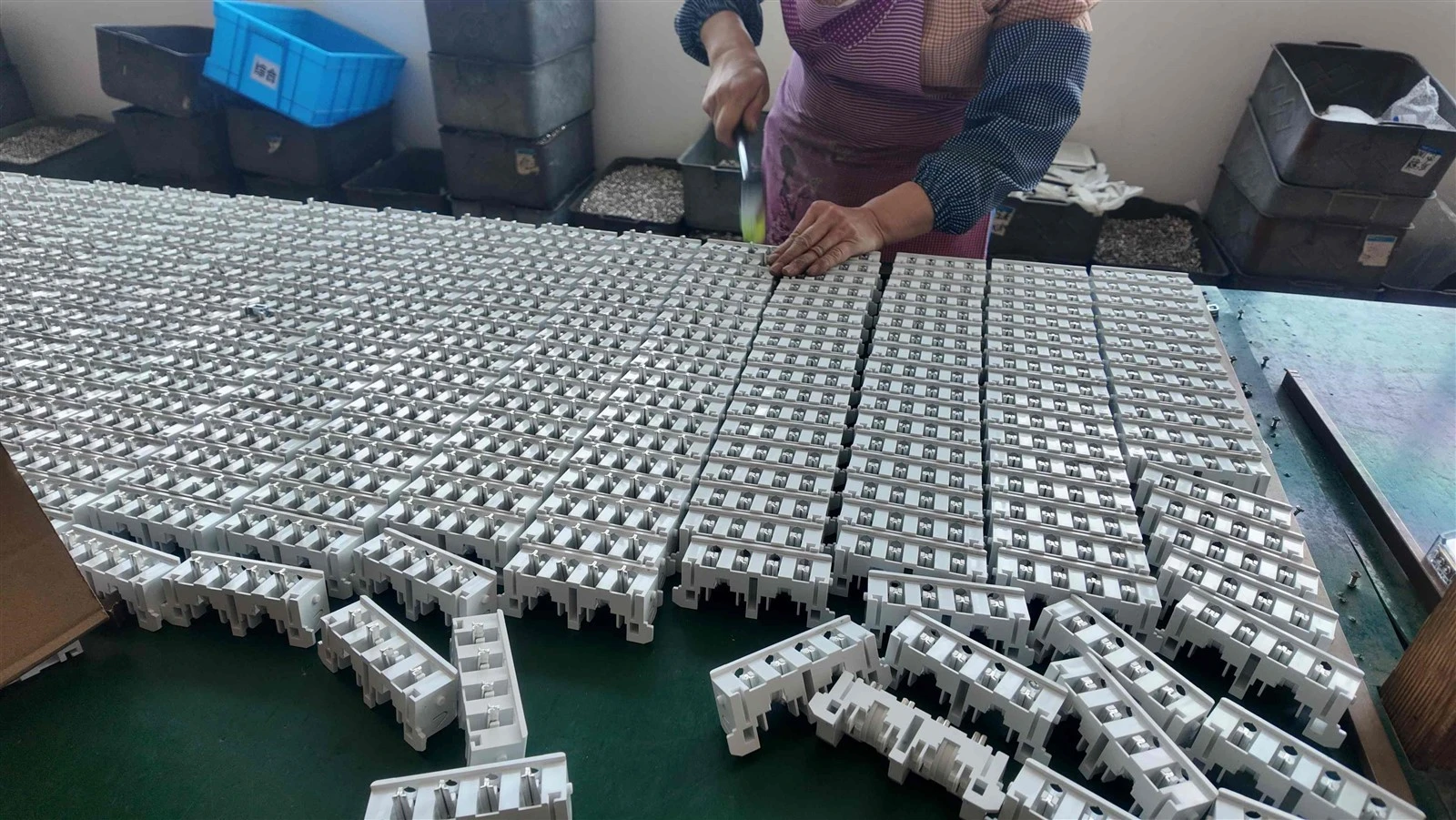

Lub cev molded nyob rau hauv PA66, lub tsheb ciav hlau clip thiab ntsia hlau tus thawj coj tsim nyob rau hauv tib lub txhaj tshuaj.
Tag nrho tsib txoj haujlwm tau kuaj xyuas tag nrho cov ntsia hlau mus ncig, cov txiaj ntsig hluav taws xob tau nkag mus rau ib pawg.
Khoom siv & Nto kho kev xaiv
Ob txoj kev xaiv txiav txim siab seb qhov thaiv no nyeem li cas tom qab ob peb xyoos hauv lub thawv sov.
Lub Compound Qab V-0 Qib
Lub cev yog molded nyob rau hauv PA66 rated UL94 V-0: cov qauv nws tus kheej-extinguishes thaum lub nplaim raug tshem tawm, yog li ib tug txhaum arc nyob rau hauv lub thawv tsis ua kom lub tsev hlawv.
Tin Ntawm Lub ntsej muag tooj liab
Cov ntsej muag tiv tauj yog cov tin-plated tooj liab alloy, uas ua rau cov oxide zaj duab xis uas liab qab tooj liab tsim nyob rau hauv ib lub thawv sov tawm ntawm ob lub ntsej muag thiab cov xov hlau.
Daim ntawv thov Scenario
Peb qhov chaw thaiv no yog tsim rau, tag nrho luv luv ntawm qhov chaw.
Teeb pom kev zoo Distribution Boards
Ib theem kiv cua tawm mus rau tsib lub voj voog zaum kawg - teeb pom kev zoo kab, teeb pom kev kub ceev, ib lub voj voog kos npe - nyob rau hauv lub rooj tsavxwm uas nyob qis qis.
Me Me Tswj Thiab Cov Khoom Siv Lub Thawv
Tswj lub thawv thiab tshuab vaj huam sib luag noj ib zaug pub tawm mus rau tsib lub voj voog sab hauv, nrog rau qhov thaiv ntsia hlau rau lub nraub qaum.
Hnub Ci Me Me Metering Enclosures
Ib txoj hlua luv luv photovoltaic teeb, lossis ib lub thawv 'meter' xav tau txog tsib lub voj voog ntawm ib tus ncej qhov twg rau - lossis yim - txoj kev thaiv yuav tsis haum.
Cov lus nug nquag
Q: Qhov block no yog dab tsi?
A: Nws rov qab tsib ceg circuits los ntawm ib tug ncej: compact teeb pom kev zoo boards, me me tswj lub thawv, luv luv hnub ci hlua teeb thiab meter thawv xav tau txog li tsib circuits.
Q: Nws kho li cas - nws puas xav tau DIN rail?
A: Tsis yog. Nws clips rau 35 hli DIN rail, thiab nws tseem tuaj yeem ntsia tau los ntawm lub cev mus rau lub vaj huam sib luag backplate. Qhov thib ob yog qhov tseem ceeb hauv lub thawv ntiav uas tsis muaj tsheb ciav hlau dawb.
Q: Cov kev ntsuam xyuas yog dab tsi, thiab ntau npaum li cas ntawm tsib lub khw tuaj yeem nqa tau?
A: 125 Ib qho txuas ntxiv rau qhov thaiv tag nrho, ntawm qhov ntsuas 690 V AC, nrog rau tsib ceg Circuit Court sib faib tag nrho. Inlet: 10-35 mm² ntawm M6 ntsia hlau torqued rau 5-7 N·m; Qhov hluav taws xob: 1.5-10 mm² ntawm M4 torqued rau 1.5-2.5 N·m.
Q: Puas yog qhov thaiv IP20 ntawm nws tus kheej, thiab UL94 V-0 npog dab tsi?
A: IP20 yog luam tawm nrog lub pob tshab npog kaw, thiab lub hau npog yog xaiv tau, yog li tsis muaj nws tsis muaj kev ntsuam xyuas. V-0 npog cov nplaim taws kis rau ntawm ib qho qauv nkaus xwb: nws tus kheej tua hluav taws thaum cov nplaim hluav taws raug tshem tawm thiab tsis muaj dab tsi ua kom kub hnyiab. Kev kuaj haus luam yeeb yog cais, tsis muaj ntawv ceeb toom ntawm no.
Q: Cov block puas tuaj yeem tsim rau peb tus kheej kos duab thiab daim ntawv lo?
A: Yog. Kev suav ntawm Circuit Court, daim ntawv lo thiab kho cov ntsiab lus yog ua rau koj daim duab, thiab OEM lossis ODM qhib rau ntawm ntim. Yam tsawg kawg nkaus txiav txim 10 pieces; tus qauv tsim 7 mus rau 10 hnub, kev cai 15 mus rau 20, nrog rau kev tsocai hauv 24 teev.
